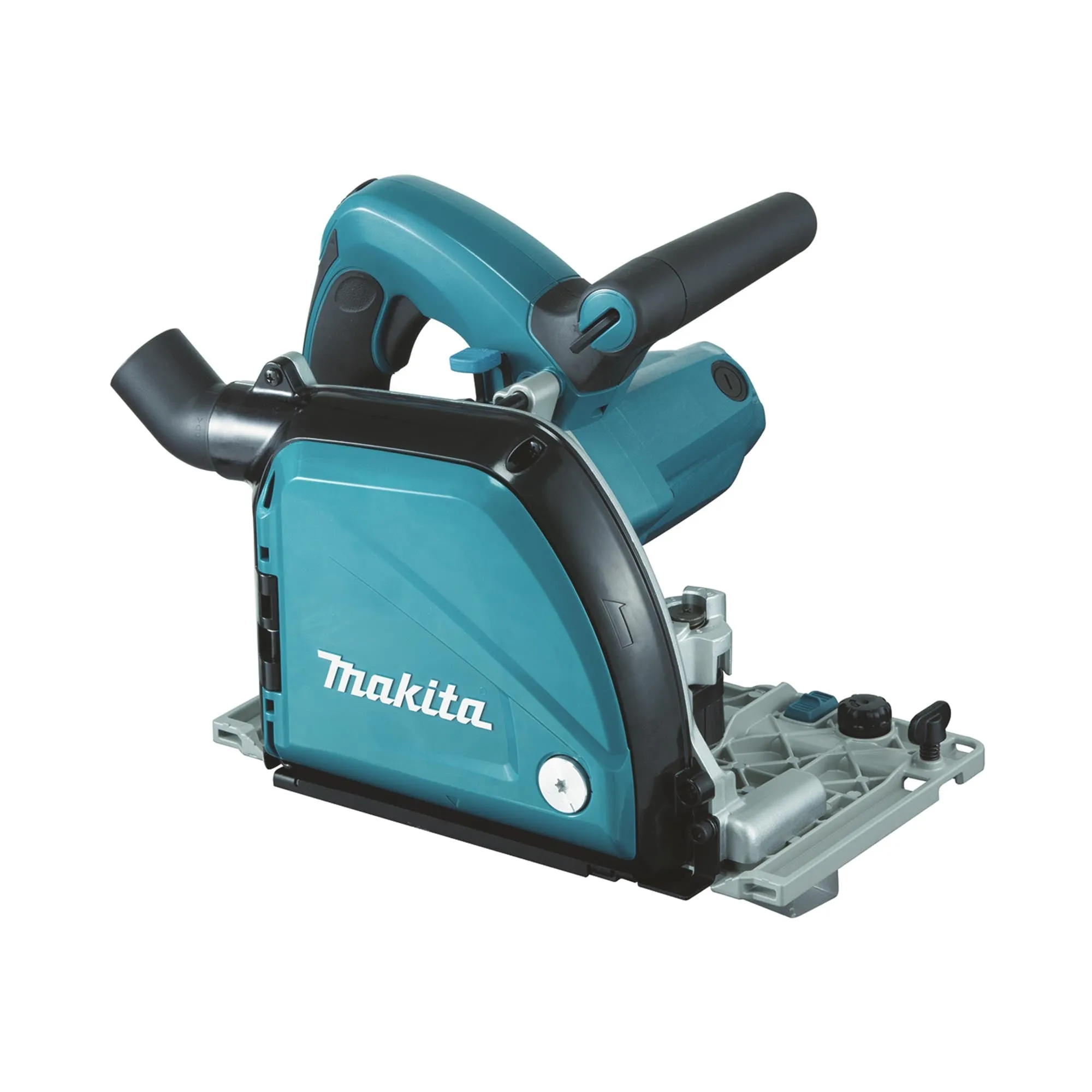

Groove Cutter Makita CA5000XJ has been developed for cutting grooves in aluminum composite materials. It can also be used as a plunge cut circular saw by removing the skirt and replacing cutter blade with ø165mm saw blade.

 BENEFITS

• Ideal for processing aluminium composite material: Cut v-shaped groove for bending aluminium panel.
• Can be used as a plunge saw by removing skirt and replacing cutter blade with 165mm Saw Blade
• 118mm 6-tooth Cutter blade for 90º V-shaped groove supplied as standard
• Electronic current limiter for overload protection.
• Variable speed control dial.
• Soft start
• Constant speed control
• Mechanical Brake
• Double Insulation
• Connectable to dust extractor
• Easy Blade Change
• Depth adjustment dial
• Compatible with Guide Rail
• Ergonomic soft grip

TECHNICAL SPECIFICATIONS

• Cutter blade diameter 118 mm

• TCT Blade Diameter 165 mm
• Bore Diameter 20 mm
• Noise sound pressure 82 dB(A)
• Noise sound power 93 dB(A)
• Noise K factor 3 dB(A)
• Input Wattage 1,300 w
• No Load Speed 2,600 - 6,400 rpm
• Vibration K factor 1.5 m/sec²
• Vibration: Cutting Metal 2.5 m/sec²
• Net weight 4.7 kg

ACCESSORIES SUPPLIED

• Cutting blade
• Base
• Hex wrench 5
• Briefcase MAKPAC
