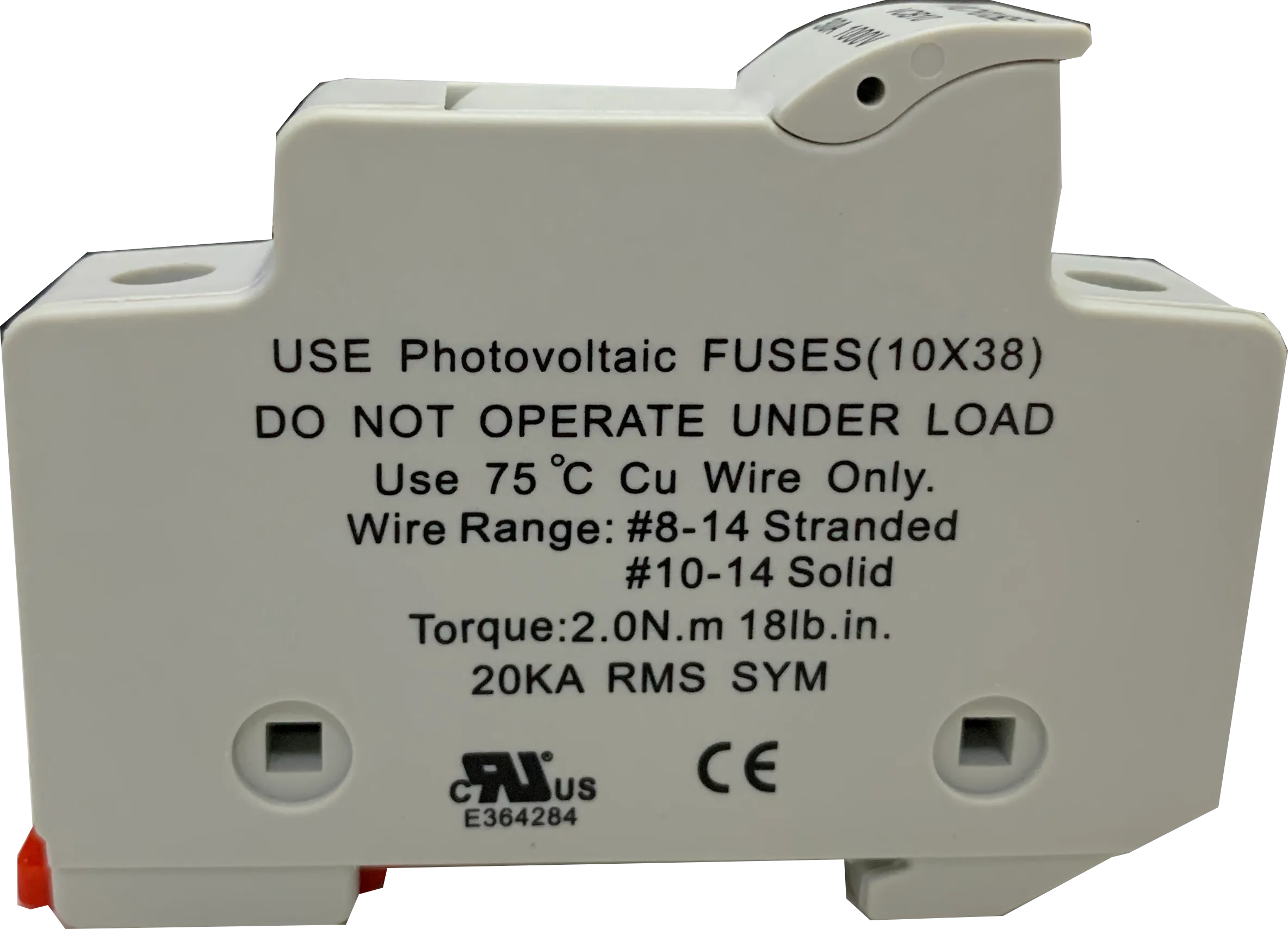

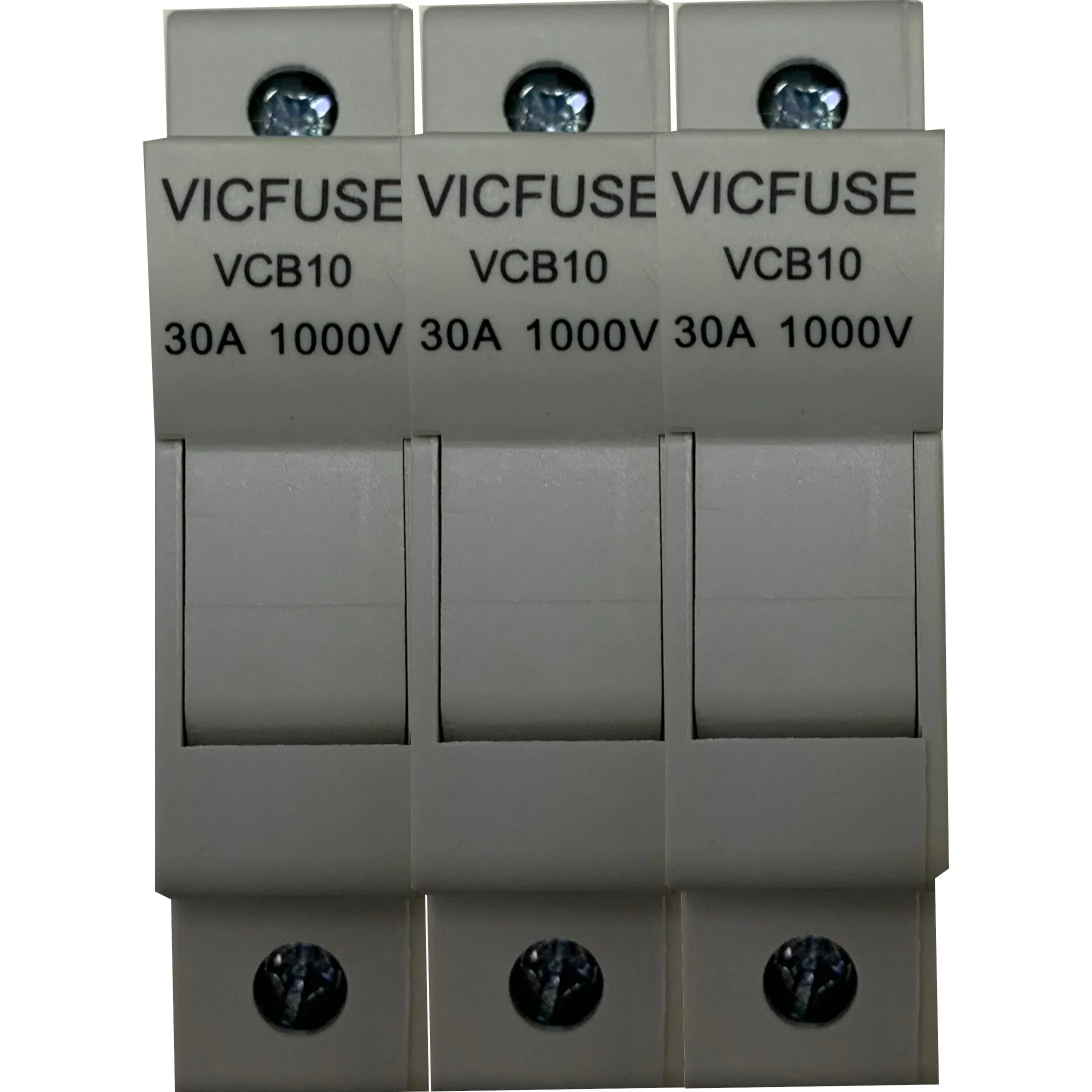

VCB10-30 3P 1000V, DIN Rail Mount Fuse Holder Three Pole for 10.,3 x 38mm, 1000VDC Solar gPV Fuse
Features
- Mountable on 35mm DIN Rail
- Easy installation and replacement of fuses
- Fuses up to 100 kA breaking capacity
Applications
- Combiner Boxes in Photovoltaic Systems
Specification
| Vicfuse Part Number | VCB10-30 3P 1000V |
| Nominal Voltage | 1000VDC |
| Tested Breaking Capacity | 100kA @1000VDC |
| Fuse Dimensions | 10.3 x 38mm |
| Fuse Holder Dimensions | 76.5 x 52.5mm |
| Suitable Fuses | ASO, AEO, PV10 |
| Operating Temperature Range | -40°C / 130°C |
| Unit Weight | 165g |
| Factory Pack Qty | 10 |
